2200W Hydraulic Punching Machine Punching Tool 10T Reinforced Model, Electric Hydraulic Hole Punching Tool for Steel Plate, Copper Aluminum, Construction

Our strengths lie in the reinforced hydraulic system, ergonomic handle, and automatic back-pressure design, ensuring safe, reliable, and comfortable use. The compact and lightweight design makes this electric hydraulic punch easily portable and suitable for on-site installation and heavy-duty work.Whether you need a busbar punching tool, an electric punch, or a hydraulic sheet metal punch, this versatile device ensures high precision, efficiency, and professional results.➤Product Specifications:Name: Electric Hydraulic DrillOutput: 10 tonsVoltage: 110V/230VPower: 2200WCopper/Aluminum Plate: ≤8mm (0.31")Iron/Steel Plate: ≤6mm (0.24")Angle Iron: 4-6#Throat Depth: 40mmDimensions: 19.69" * 7.68" * 3.94" (500 * 195 * 100mm)Net Weight: 12kgStandard Dies: Φ6.5, Φ9, Φ13, Φ17, Φ20.5➤Packing List:1 * Electric Hydraulic Drill2 * Hex Wrenches5 * Dies1 * Oil Can1 * Storage Box1 * Foot Switch1 * Auxiliary Handle1 * InstructionsOther Installation Accessories➤Precautions：1. When assembling the upper and lower dies of the punching machine, ensure that the upper and lower die numbers match, and tighten the upper die retaining sleeve.2. When installing the lower die of the hydraulic punching machine, ensure that the blade faces upward and never install it upside down.3. Ensure that any waste material that normally accumulates in the hole is removed.4. Do not use in areas where corrosive substances are present.

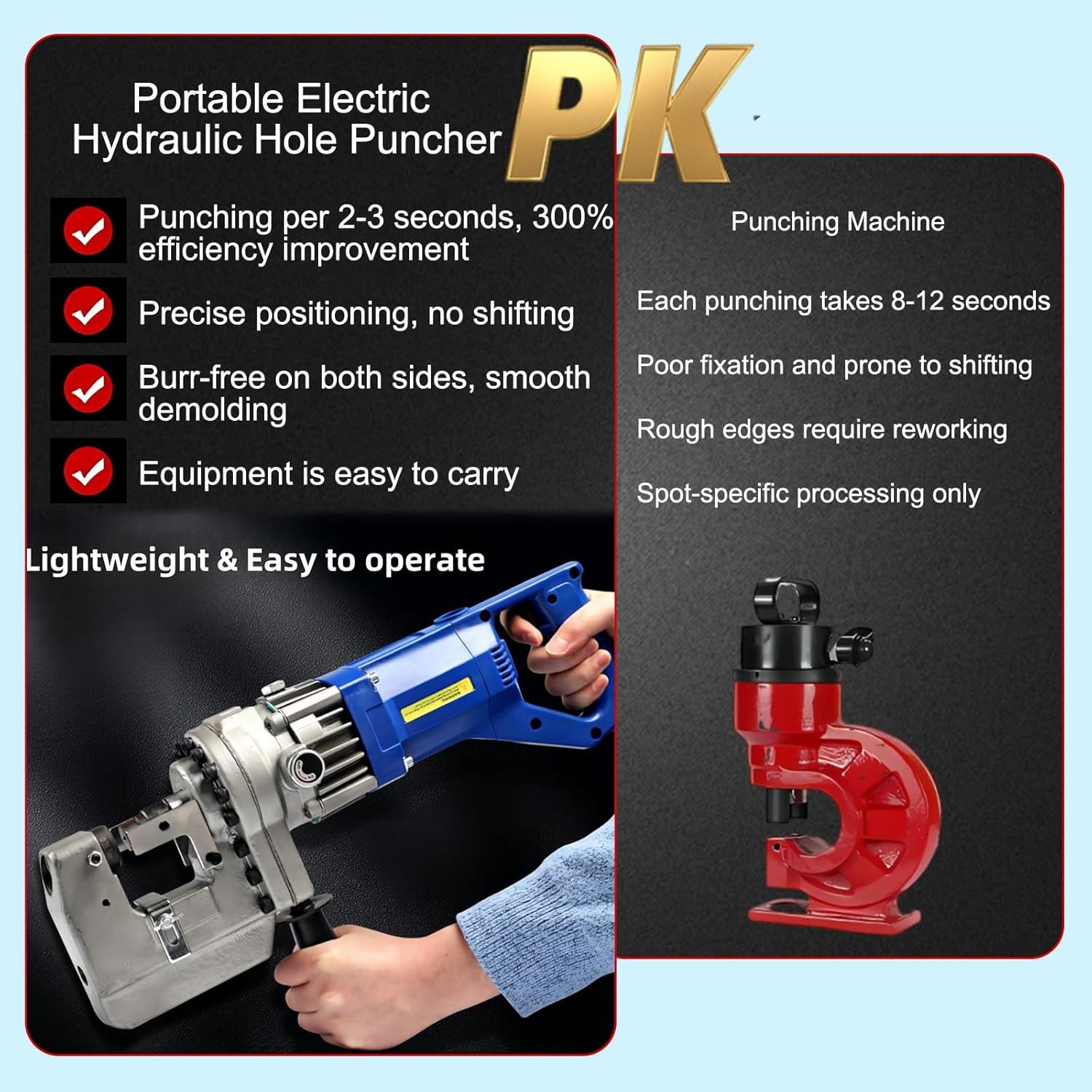

• 【Enhanced 2200W Motor】Electric Hydraulic Hole Puncher delivers up to 10 tons of punching force with a fast 2–3 second cycle, ensuring efficient metal punching.

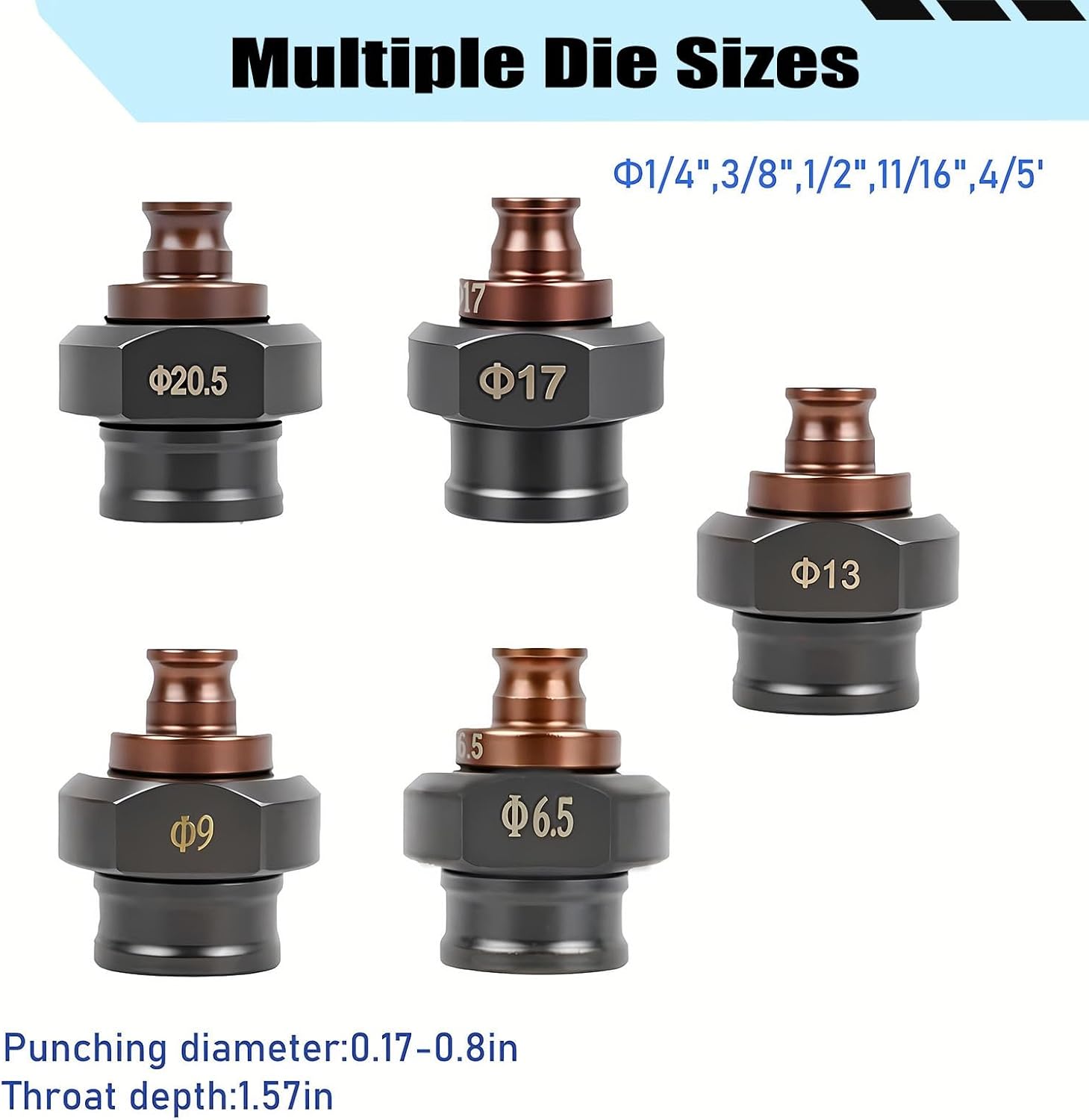

• 【Equipped with Standard Dies】Metal Punching Machine includes Φ6.5mm/9mm/13mm/17mm/20.5mm (1/4"-4/5") dies, suitable for copper/aluminum plates ≤8mm(0.31"), iron/steel plates ≤6mm(0.24"), and angle steel (4-6#).

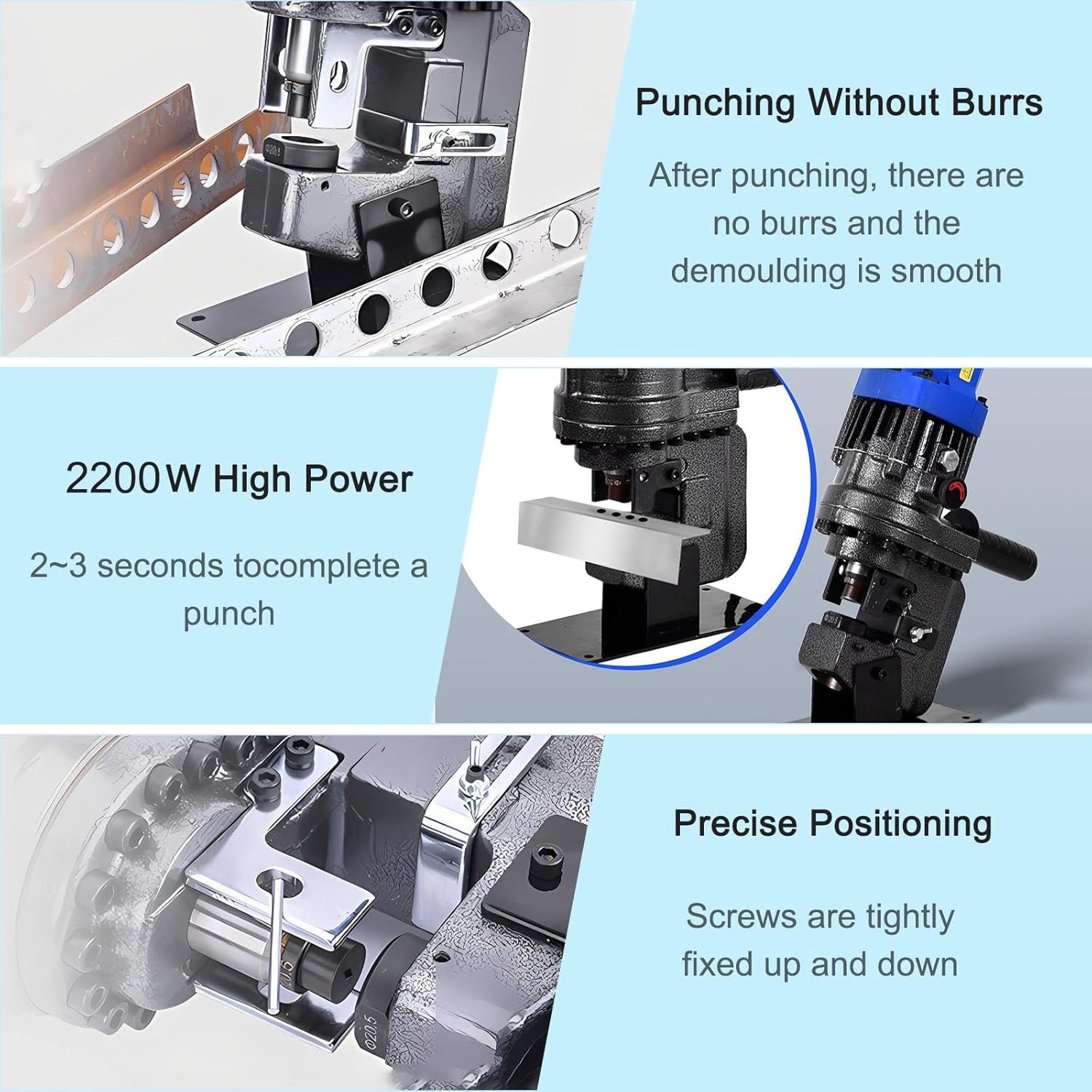

• 【Accurate Positioning】Hydraulic Punching Machine Punching Tool offers 40mm throat depth with precise die alignment, ensuring stable positioning and accurate punching without deviation.
• 【Four safety features】Hydraulic Hole Puncher features a high-strength body, automatic return design, independent safety valve, and top oil-filling port for extended service life and safe use.
• 【Portable Complete Kit】Electric Hydraulic Hole Punching Tool has a compact design with detachable handle and base for multi-angle or desktop use. Comes with storage case, gloves, wrenches, and all essential on-site accessories.
