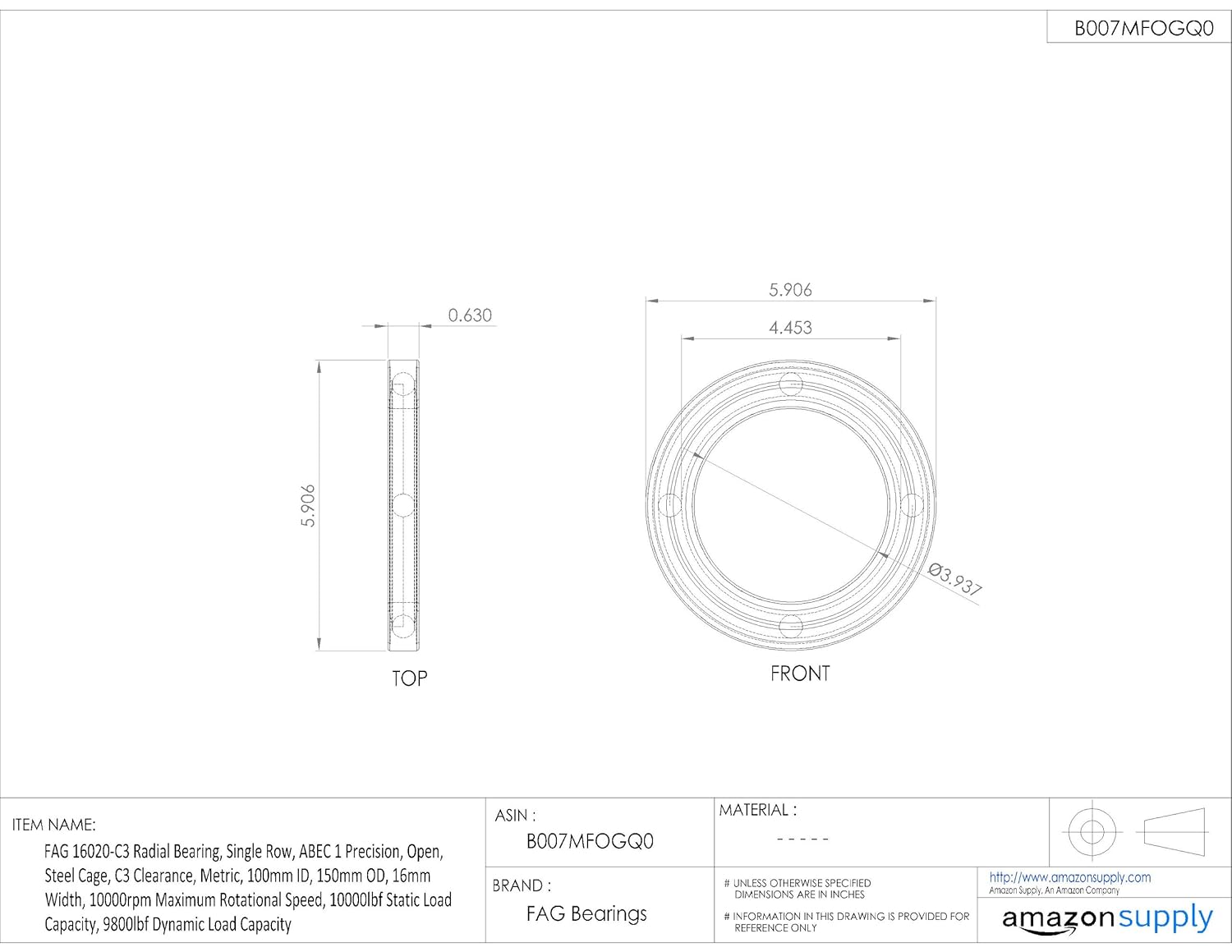

FAG 16020-C3 Radial Bearing, Single Row, ABEC 1 Precision, Open, Steel Cage, C3 Clearance, Metric, 100mm ID, 150mm OD, 16mm Width, 10000rpm Maximum Rotational Speed, 10000lbf Static Load Capacity, 9800lbf Dynamic Load Capacity

The FAG radial bearing is an open single-row bearing with metric dimensions for supporting radial loads. This single-row bearing conforms to the Annular Bearing Engineers Committee (ABEC) 1 precision standard for performance within a narrow range of variation and has C3 radial internal clearance for radial slack between the inner and outer rings that is greater than CN (normal) to compensate for thermal expansion. The steel cage evenly spaces the balls for even load distribution and prevents contact to reduce friction, vibrations, and noise. The bearing has an open configuration for lubrication in place and for use in applications with little exposure to dirt, grime, debris, and other contaminants. This FAG radial ball bearing is for use in applications that involve combined radial and axial loads and a need for high running accuracy and stiffness at high rotational speeds. Such applications include clutches, drives, gearboxes, compressors, pumps, turbines, and printing and textile machines, among others.Rolling bearings use rolling elements to maintain the separation between moving parts to reduce rotational friction and support radial and axial loads. These elements can be one of the following types: ball, cylindrical, spherical, barrel, needle, spindle, or tapered. All rolling bearings are open, shielded, or sealed. Sealed bearings are lubricated with oil or grease in the bearing factory, while open and shielded bearings are meant to be lubricated in place, with periodic reapplication of lubrication, based on use. The shield protects the working parts of the bearing from environmental debris that may be introduced and could reduce the ball bearing speed and lifespan. Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, dental equipment, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.FAG manufactures a variety of bearings that meet International Organization for Standardization (ISO) and Deutsches Institut für Normung (DIN) standards for quality assurance. Founded in 1883, FAG is based in Schweinfurt, Germany.

• Single-row bearing for supporting radial loads
• C3 radial internal clearance for radial slack between the inner and outer rings that is greater than CN (normal) to compensate for thermal expansion
• Conforms to ABEC 1 precision standard for performance within a narrow range of variation
• Steel cage evenly spaces the balls for even load distribution and prevents contact to reduce friction, vibrations, and noise
• Open bearing for lubrication in place and for use in applications with little exposure to dirt, grime, debris, and other contaminants
